Portable aircraft hangar

Our hangar has advantages of eazy installation,low cost,graceful exterior and so on.This product design by our company for people or those who owned airolanes.Due to the basis of its steel,it can chage its forms to contain airplanes with different sizes.The external wall uses color plate as surrounding material and the main supporting uses hot rolling H type steel.The utility rate of space is great.

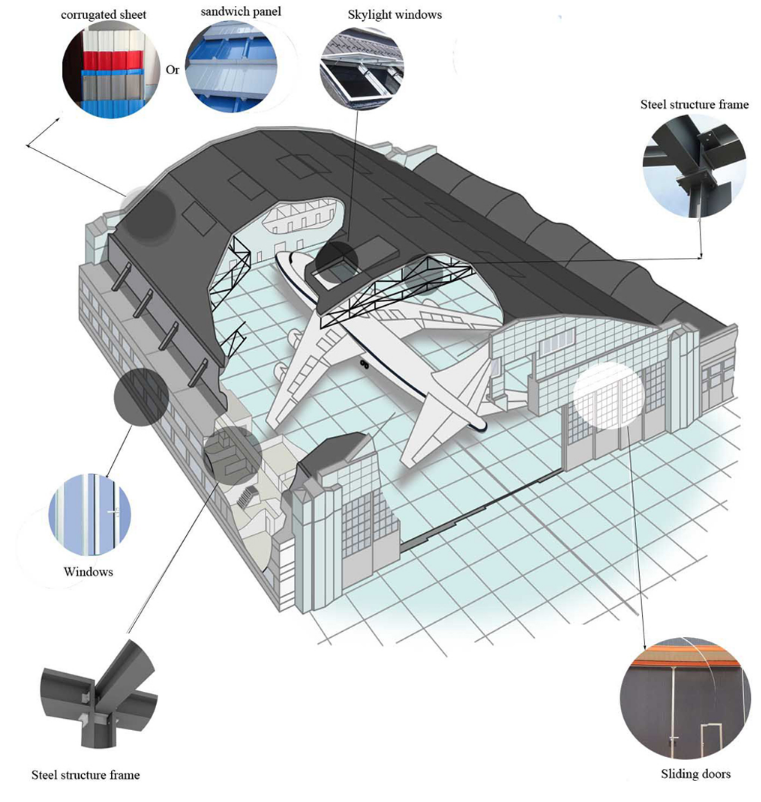

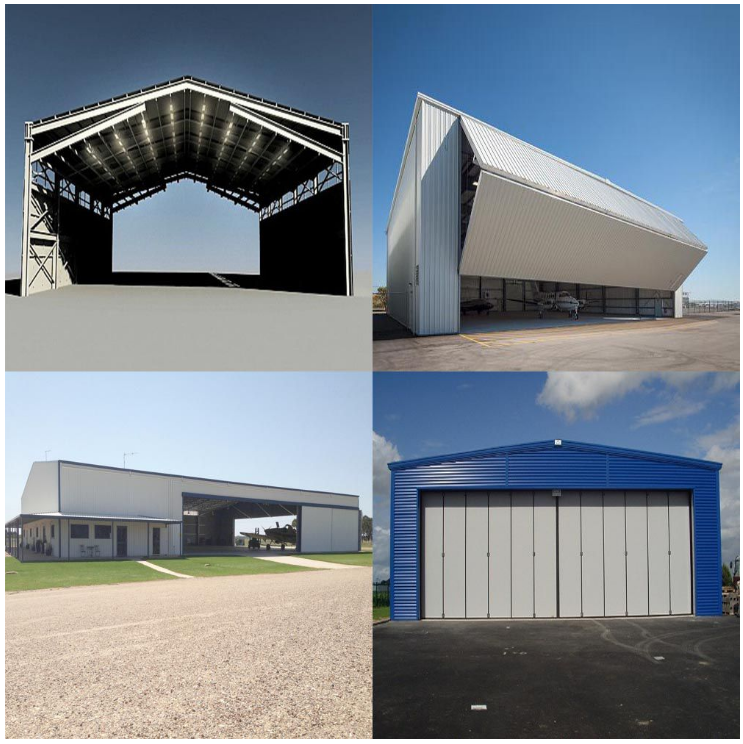

Steel structure aircraft hangar breakdown drawing: Steel structure aircraft hangar breakdown photo:Steel structure components introductions:

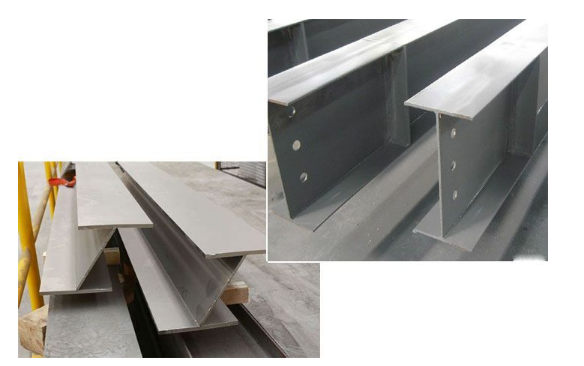

H sections:

Material:Q235/Q345

Surface:Galvanized zinc coat or two-layer of rich-zinc expoy paint

Usage:Make up the main steel structure frame

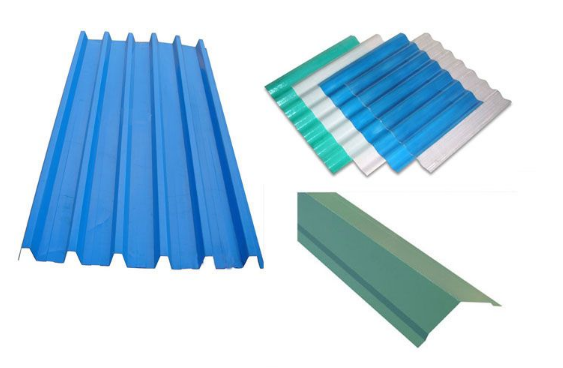

Roof sheet and ridge title:

Color:Ral colors,optional

Thickness:0.2-0.8mm

Usage:Roof or wall panels for steel structure buildings panels

We have several lines of press,can produce many types of corrugated sheets

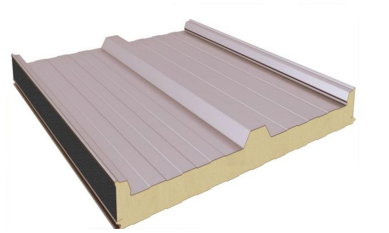

Sanswich panel/cladding panel

Made up by two PPGI surface sheets and core material

Classification as shapes:Wall panel and roof panel

a.Wall panel:one side is PPGI corrugated sheet,another side is plain PPGI sheet or both sides are samll sheets.

b.Roof panel:top side are PPGI corrugated sheets,another side is plain or small wave sheets.Classification as core material:EPS

sandwich panel,Rockwool sandwich panel,PU/PIR sanswich panel,etc

Applications:Fire protection and warm insulation

Advantage:Fire protection and warm insulation

Advantage:Removable,light weight and eazy to installde

C/Z purlins

Material:Q235 or Q345

Surface:Galvanized zinc coat

CLassification:Z purlin and C purlin

Applications:For supporting protection structure,panels

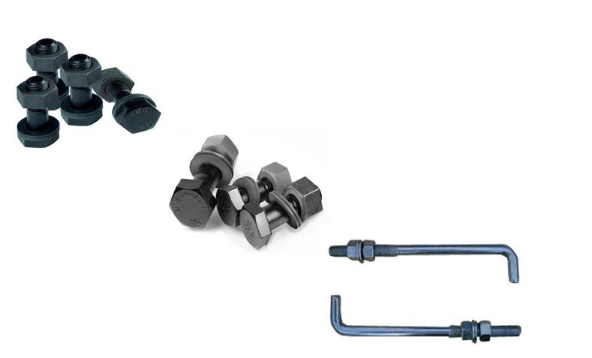

Bolts

As the structure main connection component.They can be classified as positions on the structure.

Foundation bolts:For connecting basement and main structure part.

Grade:M24

High strength bolts:For connecting main structure part,such as pillars,beams.

Grade:A20

Commom bolt:For connecting second part structure

Grade:M12

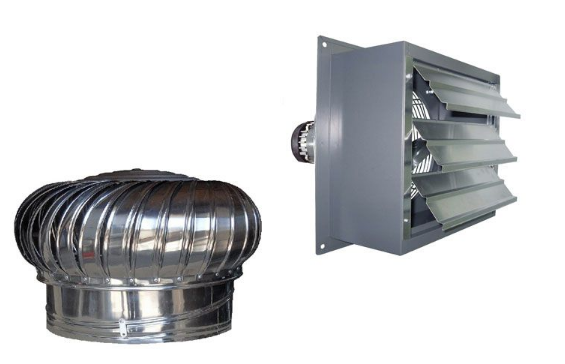

Ventilation components

Classification:No power fans,electrical fans

No power Fans are normally installed on wall.can dedust,ventilation.

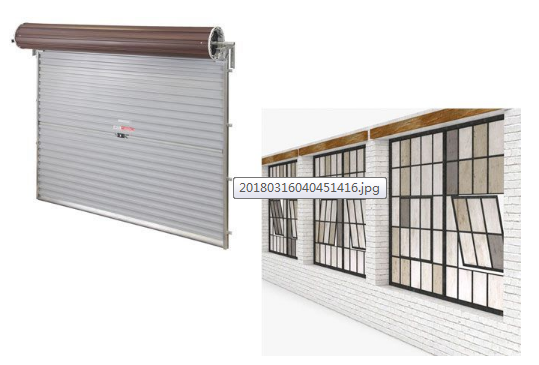

Doors/Windows

Material:Plastic steel or alloy aluminum

Ysage:Ventilation,for people,trucks in and out

Position:On the wall or on the roof
